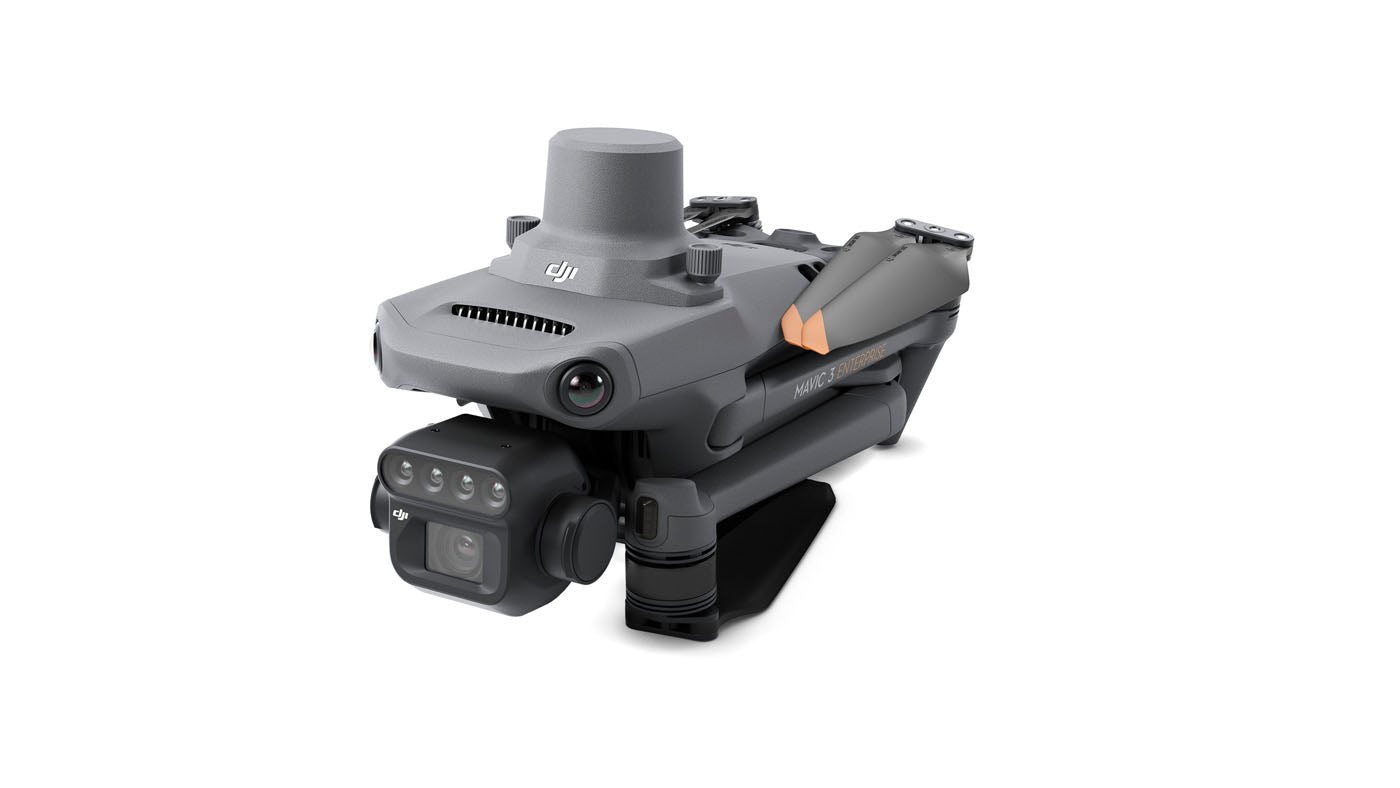

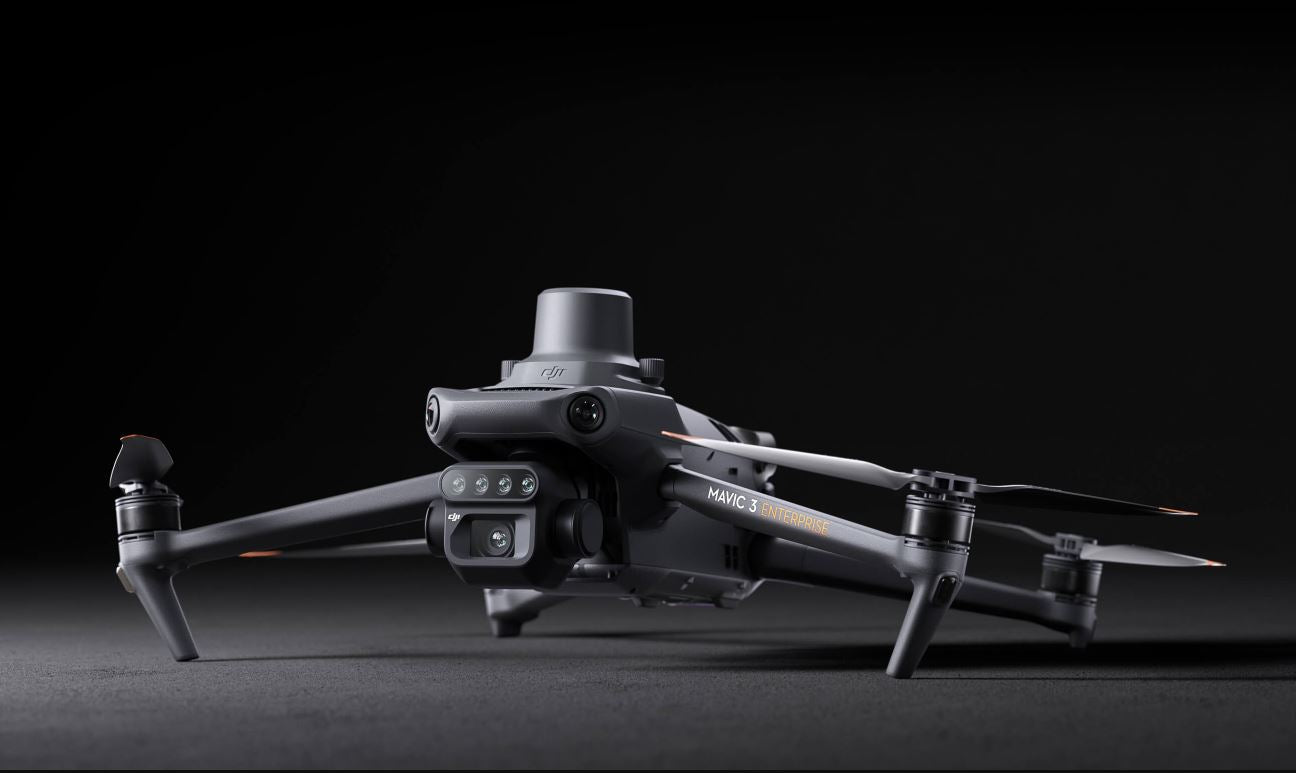

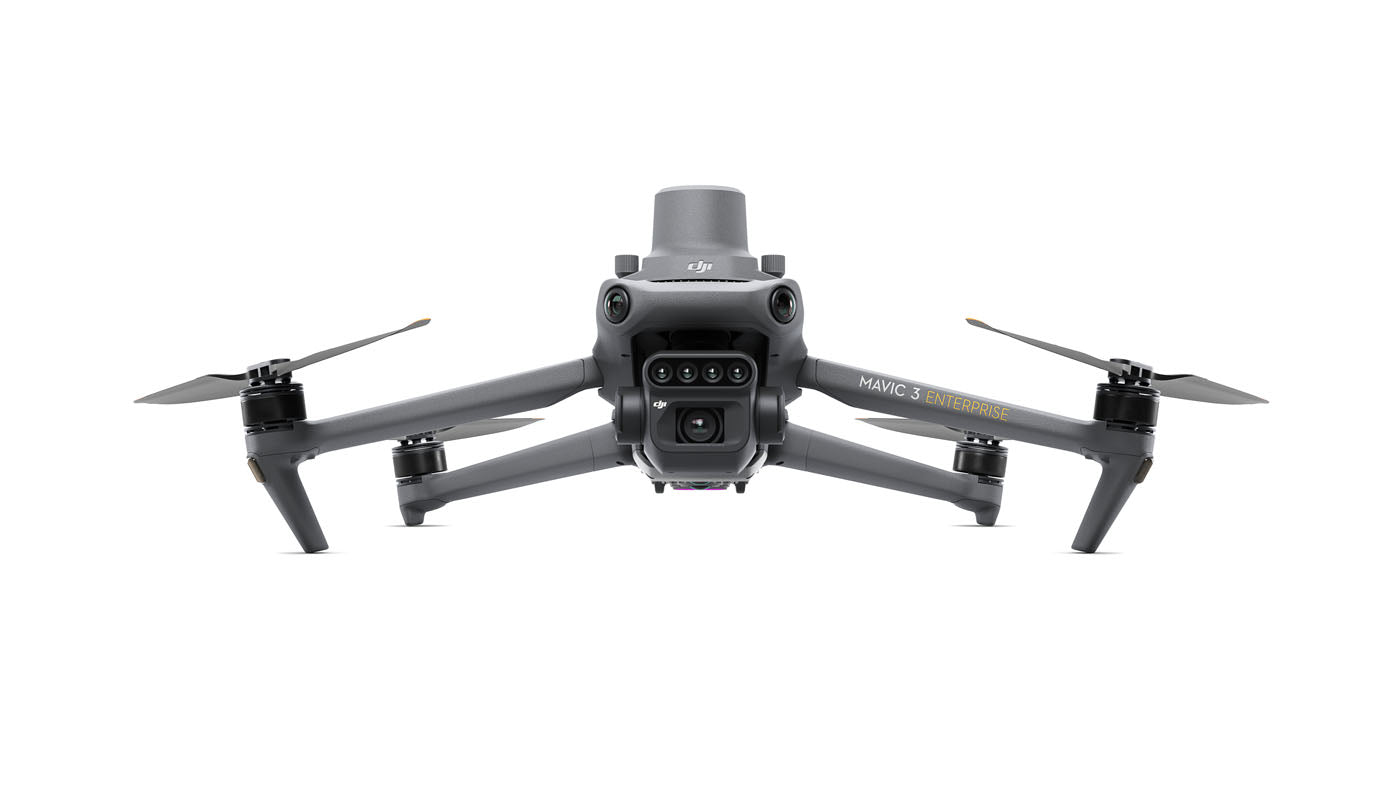

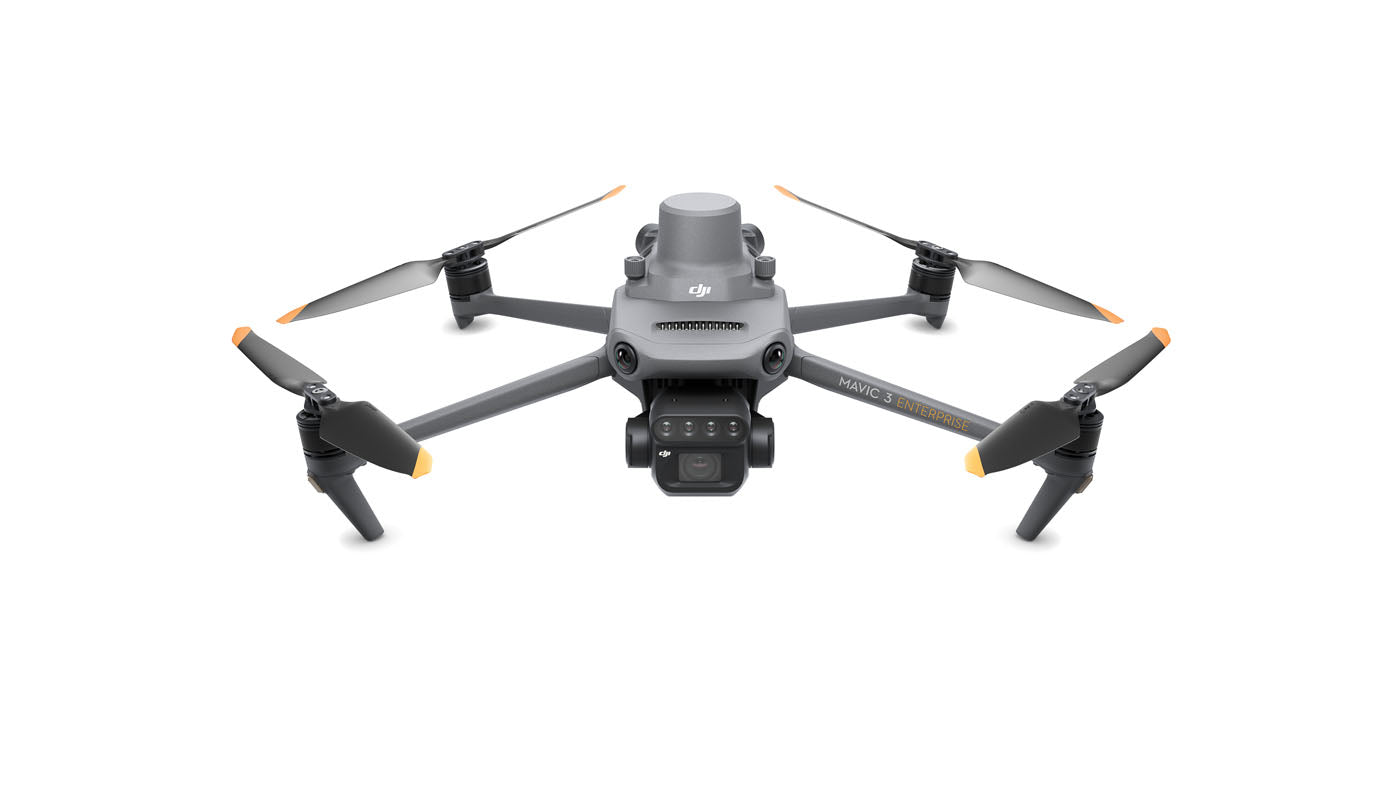

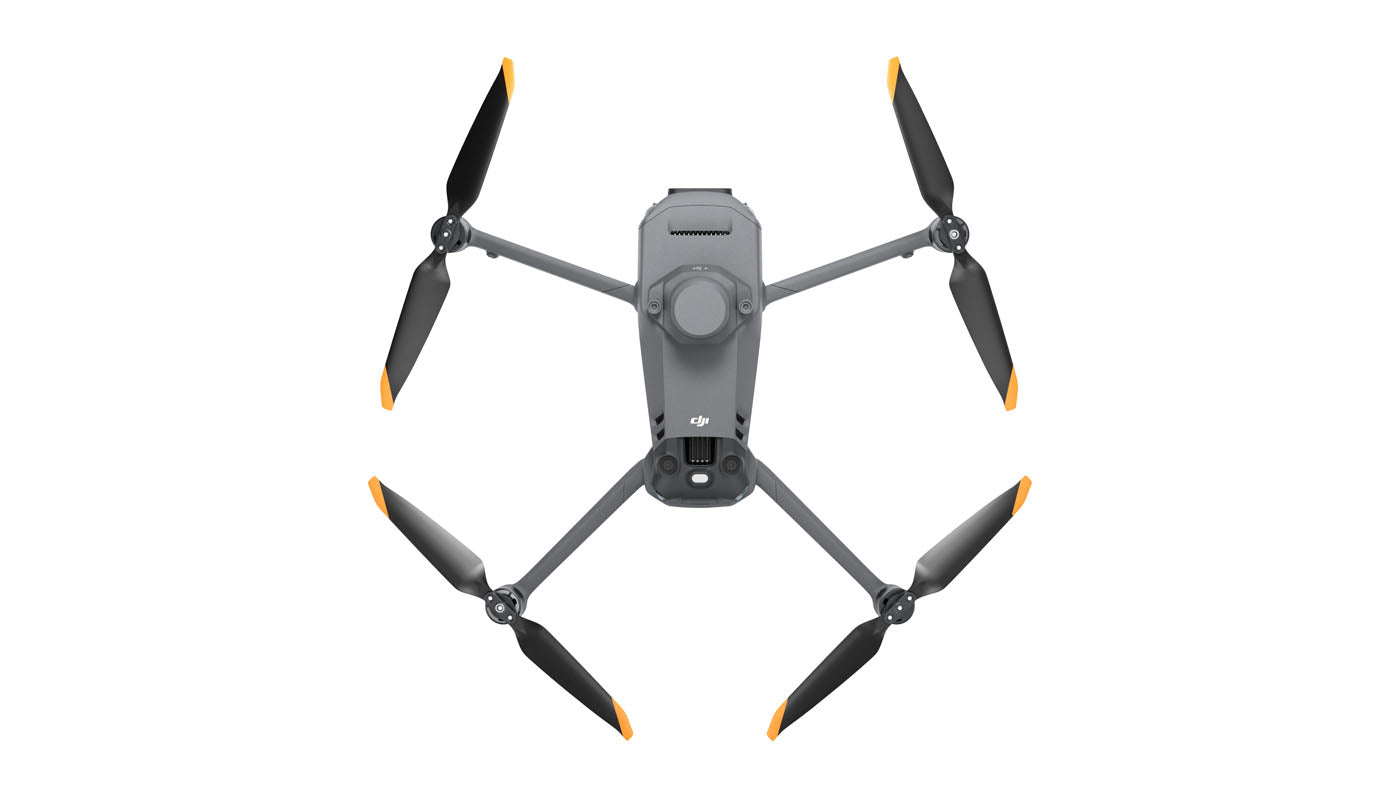

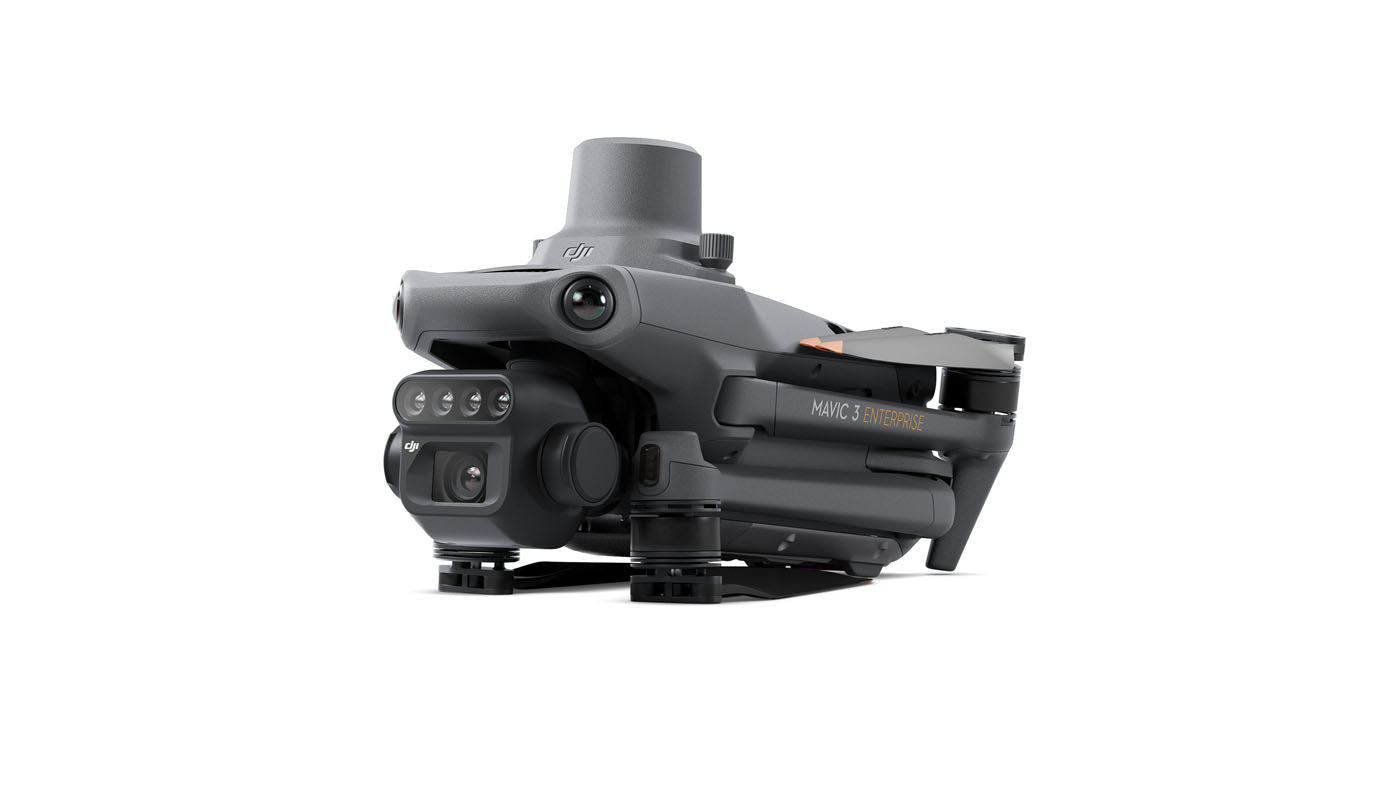

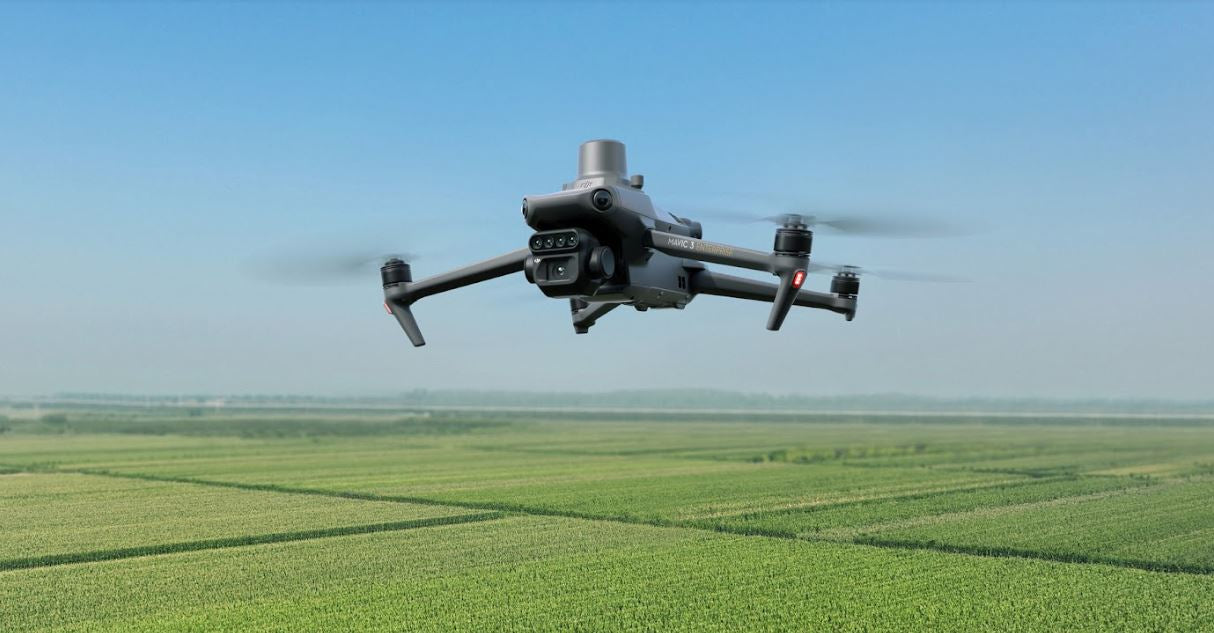

DJI Mavic 3 Multispectral Drone

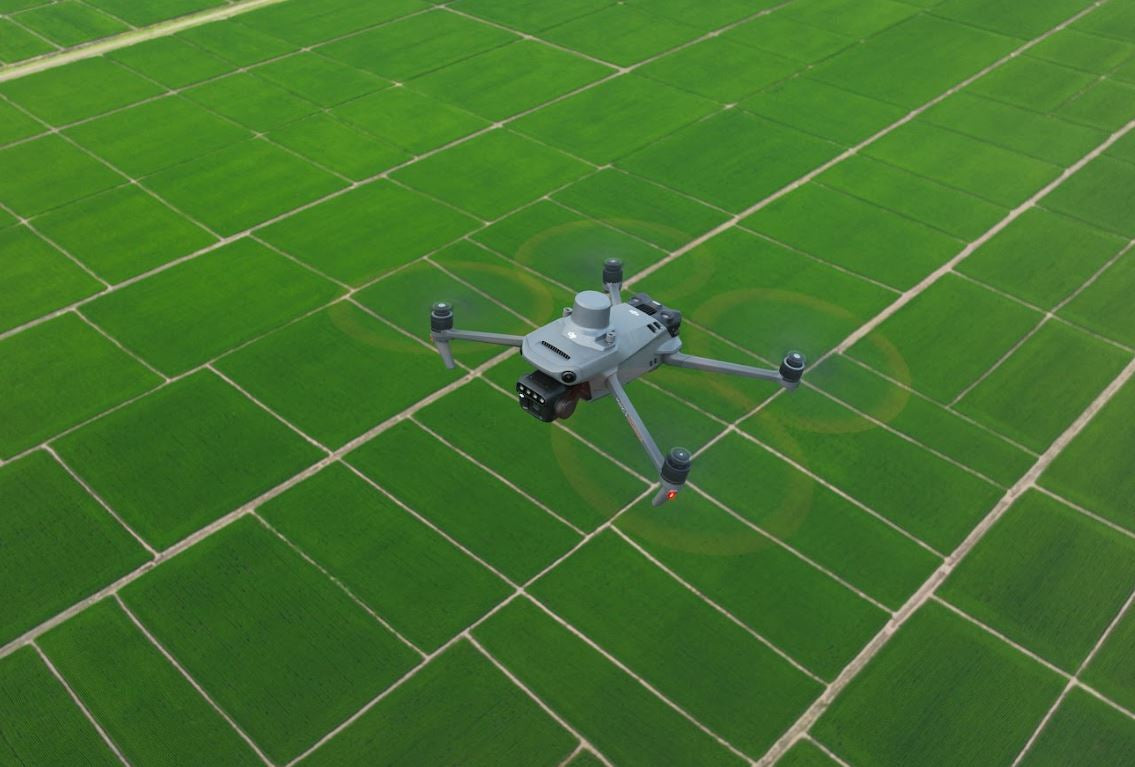

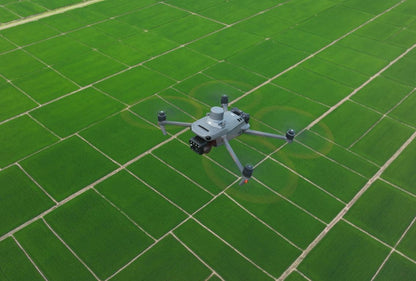

The DJI Mavic 3 Multispectral Drone is a cutting-edge solution designed for professionals in agriculture, environmental monitoring, and land management. Equipped with a 20MP RGB camera and four 5MP multispectral cameras (Green, Red, Red Edge, and Near Infrared), it enables precise vegetation analysis and crop health monitoring. The integrated RTK module ensures centimeter-level accuracy, eliminating the need for ground control points during aerial surveys. With a maximum flight time of 43 minutes and the ability to cover up to 200 hectares per flight, the Mavic 3 Multispectral is engineered for efficiency and reliability.

🎥 Key Features

• Dual Imaging System: Combines a 20MP RGB camera with four 5MP multispectral cameras (Green, Red, Red Edge, Near Infrared) for comprehensive vegetation analysis.

• RTK Module: Provides centimeter-level positioning accuracy, syncing flight control, camera, and RTK module in microseconds for precise data capture.

• Sunlight Sensor: Captures solar irradiance to calibrate image data during 2D reconstruction, enhancing NDVI results and data consistency.

• Efficient Aerial Surveying: Achieves a maximum flight time of 43 minutes and can cover up to 200 hectares per flight, optimizing large-area surveys.

• Omnidirectional Obstacle Avoidance: Equipped with multiple wide-FOV vision sensors for accurate obstacle detection in all directions.

• O3 Transmission System: Supports stable, interference-free signals with a range of up to 15 km, ensuring reliable data transmission.

🛠️ Specifications

• RGB Camera:

  • Sensor: 4/3 CMOS, 20MP

  • Aperture: f/2.8 to f/11

  • Shutter Speed: Electronic: 8–1/8000 s; Mechanical: 8–1/2000 s

  • ISO Range: 100–6400

  • Field of View: 84°

  • Focus: 1 m to ∞

  • Max Image Size: 5280×3956

• Multispectral Cameras:

  • Sensors: 4× 1/2.8-inch CMOS, 5MP each

  • Bands: Green (560 ± 16 nm), Red (650 ± 16 nm), Red Edge (730 ± 16 nm), Near Infrared (860 ± 26 nm)

  • Aperture: f/2.0

  • Field of View: 73.91°

  • Shutter Speed: Electronic: 1/30–1/12800 s

  • Max Image Size: 2592×1944

• RTK Module:

  • Provides centimeter-level positioning accuracy

  • Syncs flight control, camera, and RTK module in microseconds

  • Flight Performance:

  • Maximum Flight Time: 43 minutes

  • Maximum Transmission Range: 15 km

  • Maximum Wind Resistance: 12 m/s

  • Maximum Flight Speed: 20 m/s

• Safety Features:

  • Omnidirectional Obstacle Avoidance

  • Terrain-Following Aerial Surveying

• Software Integration:

  • Compatible with DJI Terra and SmartFarm platforms for data processing and analysis

🛡️ Warranty & Support

The DJI Mavic 3 Multispectral Drone comes with a 1-year limited warranty. DJI offers comprehensive customer support to assist with any inquiries or issues.
